Showing 33–48 of 66 results
The MX230 is a 230mm heavy-duty industrial mecanum wheel set rated for 800kg per set. Each wheel combines an aluminum alloy body with 8 steel-core polyurethane-coated rollers. The set is intended for AGVs, mobile robots, and industrial omnidirectional platforms that require controlled lateral, diagonal, and rotational movement. Specifications: Diameter: 230mm (9 inches) Width: 113mm Number…
The MX254 is a 254mm heavy-duty industrial mecanum wheel set rated for 1500kg per set. Each wheel combines an aluminum alloy body with 8 steel-core polyurethane-coated rollers. The set is intended for AGVs, mobile robots, and industrial omnidirectional platforms that require controlled lateral, diagonal, and rotational movement. Specifications: Diameter: 254mm (10 inches) Width: 128mm Number…
Left-hand 254mm stainless steel mecanum wheel with 12 nylon bearing rollers for heavy-duty multidirectional platforms.
Right-hand 254mm stainless steel mecanum wheel with 12 nylon bearing rollers for heavy-duty multidirectional platforms.
The MX305 is a 304.8mm heavy-duty industrial mecanum wheel set rated for 3000kg per set. Each wheel combines an aluminum alloy body with 8 steel-core polyurethane-coated rollers. The set is intended for AGVs, mobile robots, and industrial omnidirectional platforms that require controlled lateral, diagonal, and rotational movement. Diameter: 304.8mm (12 inches) Width: 156mm Number of…
The MX305B is a 304.8mm heavy-duty industrial mecanum wheel set rated for 3000kg per set. Each wheel combines an aluminum alloy body with 9 steel-core polyurethane-coated rollers. The set is intended for AGVs, mobile robots, and industrial omnidirectional platforms that require controlled lateral, diagonal, and rotational movement. Diameter: 304.8mm (12 inches) Width: 140mm Number of…
The MX355 is a 355mm heavy-duty industrial mecanum wheel set rated for 4000kg per set. Each wheel combines an aluminum alloy body with 8 aluminum-core polyurethane-coated rollers. The set is intended for AGVs, mobile robots, and industrial omnidirectional platforms that require controlled lateral, diagonal, and rotational movement. Specification: Diameter: 355mm (14 inches) Width: 190mm Main…
The MX375 is a 375mm heavy-duty industrial mecanum wheel set rated for 4500kg per set. Each wheel combines an aluminum alloy body with 8 aluminum-core polyurethane-coated rollers. The set is intended for AGVs, mobile robots, and industrial omnidirectional platforms that require controlled lateral, diagonal, and rotational movement. Specification: Diameter: 375mm (15 inches) Width: 170mm Main…
The MX406 is a 406mm heavy-duty industrial mecanum wheel set rated for 5000kg per set. Each wheel combines an aluminum alloy body with 8 aluminum-core polyurethane-coated rollers. The set is intended for AGVs, mobile robots, and industrial omnidirectional platforms that require controlled lateral, diagonal, and rotational movement. Specification: Diameter: 406mm (16 inches) Width: 212mm Main…

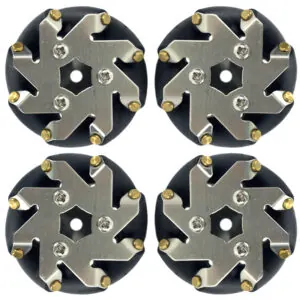

The 48mm stainless steel mecanum wheel set includes two left wheels and two right wheels. Each wheel uses eight TPR rollers mounted at 45 degrees between two steel plates. Compatible 3mm, 4mm, and 5mm brass couplings are available for compact robotic platforms. Specifications: Diameter: 48mm Width: 25.5mm Number of rollers: 8 Number of plates: 2…
The 48mm left stainless steel mecanum wheel uses eight TPR rollers mounted at 45 degrees between two steel plates. Pair it with model 14209R in a four-wheel system, normally using two wheels of each orientation. Compatible 3mm, 4mm, and 5mm brass couplings are available. Specifications: Diameter: 48mm Width: 25.5mm Number of rollers: 8 Number of…
The 48mm right stainless steel mecanum wheel uses eight TPR rollers mounted at 45 degrees between two steel plates. Pair it with model 14209L in a four-wheel system, normally using two wheels of each orientation. Compatible 3mm, 4mm, and 5mm brass couplings are available. Specifications: Diameter: 48mm Width: 25.5mm Number of rollers: 8 Number of…
This 6-inch (152mm) left mecanum wheel is designed to be used with three other wheels: two right and one left. It includes eight rollers mounted around its circumference. The wheel is designed for heavy-duty applications and is supplied as an assembled unit between two thick stainless steel plates. The rollers are made of black polyurethane….
This 6-inch (152mm) right mecanum wheel is designed to be used with three other wheels: one right and two left. It includes eight rollers mounted around its circumference. The wheel is designed for heavy-duty applications and is supplied as an assembled unit between two thick stainless steel plates. The rollers are made of black polyurethane….
This 60mm left aluminum mecanum wheel is a compact, LEGO-compatible wheel for small robotic platforms. Eight PP/PE rollers are mounted at 45 degrees to the wheel axis. Pair it with model 14159R in a four-wheel system, normally using two wheels of each orientation. Specifications: Diameter: 60mm Width: 31mm Number of rollers: 8 Number of plates:…
This 60mm right aluminum mecanum wheel is a compact, LEGO-compatible wheel for small robotic platforms. Eight PP/PE rollers are mounted at 45 degrees to the wheel axis. Pair it with model 14159L in a four-wheel system, normally using two wheels of each orientation. Specifications: Diameter: 60mm Width: 31mm Number of rollers: 8 Number of plates:…
