Integration guide
Universal hubs and couplings help connect MECAWHEEL mecanum or omni wheels to motors, shafts and drive assemblies when the standard interface does not match the platform.
The important details are bore size, keyway, fixing method, bolt pattern, shaft support and available mounting space. A suitable hub can often avoid full wheel customization.
Contact salesUse a hub when the wheel and motor or shaft interface do not match directly, or when a removable mechanical adapter is preferred.
Share shaft diameter, keyway, fixing method, bolt pattern, available width and the wheel model you plan to use.
Often yes. A suitable hub or coupling can solve integration requirements without changing the wheel body.
Showing 1–16 of 43 results
The 6mm three-piece black anodized coupling set uses high-strength aluminum alloy to provide a lightweight, corrosion-resistant connection for robot wheels, omni wheels, and mecanum wheels. Its low-inertia design supports responsive drive systems, while the three-piece construction helps accommodate minor shaft misalignment. 6mm 3 piece coupling sets
The 6mm aluminum universal mounting hub connects robot wheels and mechanisms to a compatible 6mm motor shaft. Its machined aluminum body and stainless steel set screw provide a compact, reusable wheel-to-shaft interface. Key Features: • Material: Aluminum alloy • Inside diameter: 6mm • Outside diameter: 57mm • Bore length: 25mm • Net weight: 56g •…
The 8mm aluminum universal mounting hub connects robot wheels and mechanisms to a compatible 8mm motor shaft. Its machined aluminum body and stainless steel set screw provide a compact, reusable wheel-to-shaft interface. Key Features: • Used to connect a wheel and a motor and fits all wheels of Mecawheel Robot • Material: Aluminum alloy •…
The 10mm aluminum universal mounting hub connects robot wheels and mechanisms to a compatible 10mm motor shaft. Its machined aluminum body and stainless steel set screw provide a compact, reusable wheel-to-shaft interface. Key Features: • Used to connect a wheel and a motor • Fits all wheels of Mecawheel Robot • Material: Aluminum alloy •…

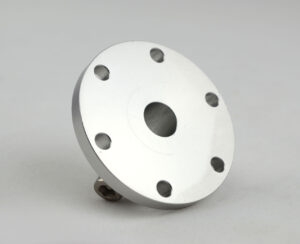

The 12mm aluminum universal mounting hub connects robot wheels and mechanisms to a compatible 12mm motor shaft. Its machined aluminum body and stainless steel set screw provide a compact, reusable wheel-to-shaft interface. Key Features: • Used to connect a motor and a wheel • Fits all wheels of Mecawheel Robot • Material: Aluminum alloy •…
The 14mm aluminum key hub uses a machined keyway and set screw to create a secure connection between a 14mm motor shaft and a compatible wheel. Custom bore options are available for project-specific mounting requirements. Specification: Material: Aluminum alloy Outside diameter: 57mm Inside diameter: 14mm Net weight: 58g Sold individually Downloads MH106 – Drawing…
The 16mm aluminum universal mounting hub connects robot wheels and mechanisms to a compatible 16mm motor shaft. Its machined aluminum body and stainless steel set screw provide a compact, reusable wheel-to-shaft interface. Specifications: Material: Aluminum alloy Inside diameter: 16mm Outside diameter: 57mm Bore length: 25mm Net weight: 100g Downloads MH107 – Drawing (PDF)
The 4mm aluminum mounting hub connects compatible 48mm and 58mm plastic omni wheels, 60mm aluminum mecanum wheels, and 60mm aluminum omni wheels to a DC motor shaft. Key Features: • Used to connect robot wheel and a DC motor • Material: Aluminum alloy • Inside diameter: 4mm • Net weight: 12g • Sold individually Compatible…
This 14mm stainless steel key hub is designed to connect a motor and a wheel. The stainless steel construction provides greater strength and durability than an aluminum version. The hub is secured to the motor shaft with a key and thread-locking compound. It provides a durable connection between the motor shaft and wheel. We manufacture…
The 12mm aluminum key hub uses a machined keyway and set screw to create a secure connection between a 12mm motor shaft and a compatible wheel. Custom bore options are available for project-specific mounting requirements. Key Features: • Material: Aluminum alloy • Outside diameter: 57mm • Bore length: 21mm • Inside diameter: 12mm • Net…
The 4mm universal aluminum mounting hub allows you to mount robot wheels and mechanisms to motor shafts. It was designed to connect our 60mm aluminum Omni Wheel MO109 and a motor. The 4mm universal aluminum mounting hubs include one stainless steel hex socket set screw for securing a motor to the hub. Key Features: •…
The 4mm universal aluminum mounting hub allows you to mount robot wheels and mechanisms to motor shafts. It was designed to connect our 60mm aluminum Mecanum Wheel MM102 and a motor. The 4mm universal aluminum mounting hubs include one stainless steel hex socket set screw for securing a motor to the hub. Key Features: •…
The 6mm universal aluminum mounting hub allows you to mount robot wheels and mechanisms securely to motor shafts. It was designed to connect our 60mm aluminum Omni Wheel MO109 and a motor. The 6mm universal aluminum mounting hubs include one stainless steel hex socket set screw for securing a motor to the hub. Key Features:…
The 6mm universal aluminum mounting hub allows you to mount robot wheels and mechanisms securely to motor shafts. It was designed to connect our 60mm aluminum Mecanum Wheel MM102 and a motor. The 6mm universal aluminum mounting hubs include one stainless steel hex socket set screw for securing a motor to the hub. Key Features:…
Compact 6mm-bore aluminum mounting hub for connecting a 48mm aluminum omni wheel to a motor shaft.
Compact 4mm-bore aluminum mounting hub for connecting a 48mm aluminum omni wheel to a motor shaft.
Application guides
Use these guides to confirm load, floor, mounting and motion requirements before choosing a model or sending an inquiry.
