Browse heavy-duty mecanum wheels, omni wheels and universal hubs for robotics, AGVs and industrial automation.
Need help selecting a wheel?Showing 49–64 of 143 results

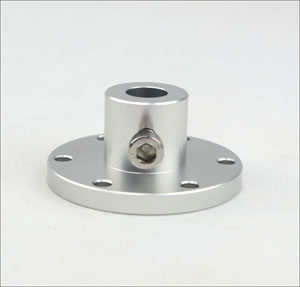

The 16mm aluminum key hub connects model MO122 and compatible wheels to a 16mm motor shaft. A machined keyway and thread-locking compound provide a secure wheel-to-shaft connection. Key Features: • Material: Aluminum alloy • Outside diameter: 36mm • Bore length: 20mm • Inside diameter: 16mm • Net weight: 42g • Sold individually Downloads MH130 –…
The 14mm aluminum key hub connects model MO122 and compatible wheels to a 14mm motor shaft. A machined keyway and thread-locking compound provide a secure wheel-to-shaft connection. Key Features: • Material: Aluminum alloy • Outside diameter: 36mm • Bore length: 20mm • Inside diameter: 14mm • Net weight: 44g • Sold individually Downloads MH131 –…
The 12mm aluminum key hub connects model MO122 and compatible wheels to a 12mm motor shaft. A machined keyway and thread-locking compound provide a secure wheel-to-shaft connection. Key Features: • Material: Aluminum alloy • Outside diameter: 36mm • Bore length: 20mm • Inside diameter: 12mm • Net weight: 47g • Sold individually 12mm Key hub
The 10mm aluminum key hub connects model MO122 and compatible wheels to a 10mm motor shaft. A machined keyway and thread-locking compound provide a secure wheel-to-shaft connection. Key Features: • Material: Aluminum alloy • Outside diameter: 36mm • Bore length: 20mm • Inside diameter: 10mm • Net weight: 49g • Sold individually Downloads MH133…
The 8mm aluminum hub connects model MO122 and compatible wheels to an 8mm motor shaft. It provides a compact shaft interface for applications that do not require a keyway. Key Features: • Material: Aluminum alloy • Outside diameter: 36mm • Bore length: 20mm • Inside diameter: 8mm • Net weight: 51g • Sold individually Downloads…
The 3mm brass coupling connects a compatible 48mm steel mecanum wheel to a 3mm motor shaft. Its brass body and steel set screw provide a compact, secure connection. The coupling is sold individually; mounting bolts and hex wrenches are not included. Specification: Material: brass Hole Diameter: 3mm hexagonal edge to edge distance:10mm Total length:30.5mm Net…
The 4mm brass coupling connects a compatible 48mm steel mecanum wheel to a 4mm motor shaft. Its brass body and steel set screw provide a compact, secure connection. The coupling is sold individually; mounting bolts and hex wrenches are not included. Specification: Material: brass Hole Diameter: 4mm hexagonal edge to edge distance:10mm Total length:30.5mm Net…
The 5mm brass coupling connects a compatible 48mm steel mecanum wheel to a 5mm motor shaft. Its brass body and steel set screw provide a compact, secure connection. The coupling is sold individually; mounting bolts and hex wrenches are not included. Specification: Material: brass Hole Diameter: 5mm hexagonal edge to edge distance:10mm Total length:30.5mm Net…
The 1/4-inch universal aluminum mounting hub connects robot wheels and mechanisms to a compatible motor shaft. It includes a stainless steel hex-socket set screw for secure installation. Key Features: • Material: Aluminum alloy • Inside diameter: 1/4″ • Outside diameter: 56.8mm • Bore length: 26.4mm • Net weight: 61.2g • Sold individually Downloads MH138 –…
The 3/8-inch universal aluminum mounting hub connects robot wheels and mechanisms to a compatible motor shaft. It includes a stainless steel hex-socket set screw for secure installation. Key Features: • Material: Aluminum alloy • Inside diameter: 3/8″ • Outside diameter: 56.8mm • Bore length: 26.4mm • Net weight: 58.1g • Sold individually Downloads MH139 –…
The 3/8-inch aluminum key hub provides a keyed connection between a 3/8-inch motor shaft and a compatible wheel. Its machined aluminum body and set screw support secure installation, with custom bore options available for project-specific requirements. Key Features: • Material: Aluminum alloy • Inside diameter: 3/8″ • Outside diameter: 56.8mm • Bore length: 26.4mm •…
The 1/2-inch aluminum D-shaft hub connects compatible robot wheels and mechanisms to a D-shaped motor shaft. It includes a stainless steel hex-socket set screw for secure installation. Key Features: • Material: Aluminum alloy • Inside diameter: 1/2″ • Outside diameter: 56.8mm • Bore length: 26.4mm • Net weight: 68.5g • Sold individually Downloads MH141 –…
The 1/2-inch aluminum key hub provides a keyed connection between a 1/2-inch motor shaft and a compatible wheel. Its machined aluminum body and set screw support secure installation, with custom bore options available for project-specific requirements. Key Features: • Material: Aluminum alloy • Inside diameter: 1/2″ • Outside diameter: 56.8mm • Bore length: 26.4mm •…
The 5/8-inch aluminum key hub provides a keyed connection between a 5/8-inch motor shaft and a compatible wheel. Its machined aluminum body and set screw support secure installation, with custom bore options available for project-specific requirements. Key Features: • Material: Aluminum alloy • Inside diameter: 5/8″ • Outside diameter: 56.8mm • Bore length: 26.4mm •…
The 48mm stainless steel mecanum wheel set includes two left wheels and two right wheels. Each wheel uses eight TPR rollers mounted at 45 degrees between two steel plates. Compatible 3mm, 4mm, and 5mm brass couplings are available for compact robotic platforms. Specifications: Diameter: 48mm Width: 25.5mm Number of rollers: 8 Number of plates: 2…
The 48mm left stainless steel mecanum wheel uses eight TPR rollers mounted at 45 degrees between two steel plates. Pair it with model MM101-R in a four-wheel system, normally using two wheels of each orientation. Compatible 3mm, 4mm, and 5mm brass couplings are available. Specifications: Diameter: 48mm Width: 25.5mm Number of rollers: 8 Number of…
Application guides
Use these guides to confirm load, floor, mounting and motion requirements before choosing a model or sending an inquiry.
