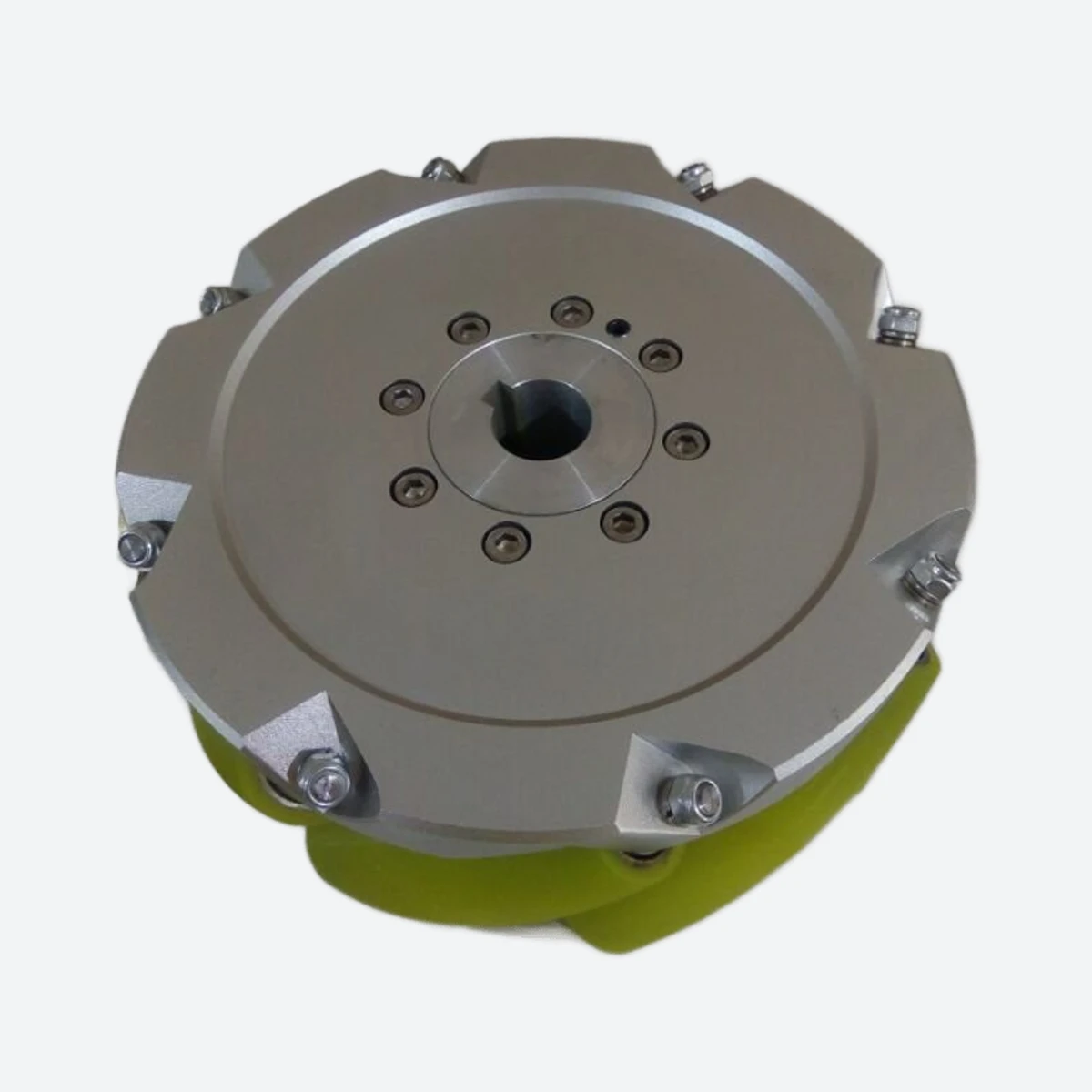

175mm Mecanum Wheel Set MX175

Key specifications

Diameter
175mm
Width
94mm
Load Capacity
400kg/set
Body Material
Aluminum alloy
Roller Material
Aluminum core with polyurethane coating
Number of Rollers
8
Inquire now

Send a product inquiry

Tell us about your requirements for 175mm Mecanum Wheel Set MX175.

By sending this inquiry, you acknowledge our Privacy Policy. Inquiry emails are retained for up to 24 months. Privacy Policy. You can also email info@mecawheel.com.

Application guides

Related application guides

Use these guides to confirm load, floor, mounting and motion requirements before choosing a model or sending an inquiry.

Heavy Duty Mecanum Wheels Explore heavy duty mecanum wheels for industrial robots, AGVs and high-payload omnidirectional platforms. Mecanum Wheel Load Calculation Calculate mecanum wheel load from platform mass, payload, wheel count, load distribution, dynamic effects and safety margin. AGV Mecanum Wheels Learn how AGV mecanum wheels support sideways positioning, compact turning and heavy-duty industrial automation platforms.
SKU: MX175 Category:

Description

The 175mm Mecanum Wheel Set MX175 is an industrial mecanum wheel for omnidirectional AGV, robotics and material-handling platforms. Contact MECAWHEEL to confirm load, hub, roller and mounting requirements.

The MX175 is a 175mm heavy-duty industrial mecanum wheel set rated for 400kg per set. Each wheel combines an aluminum alloy body with 8 aluminum-core polyurethane-coated rollers. The set is intended for AGVs, mobile robots, and industrial omnidirectional platforms that require controlled lateral, diagonal, and rotational movement.

Specifications:
Diameter: 175mm
Width: 94mm
Number of rollers: 8
Number of plates: 2
Body material: Aluminum alloy
Roller material: Aluminum core with polyurethane coating
Net weight: 5.5kg x 4
Load capacity: 400kg/set

Download PDF Files:

PDF drawing MX175 Download

Download 3D Files:

3D archive MX175 3D CAD archive Download
