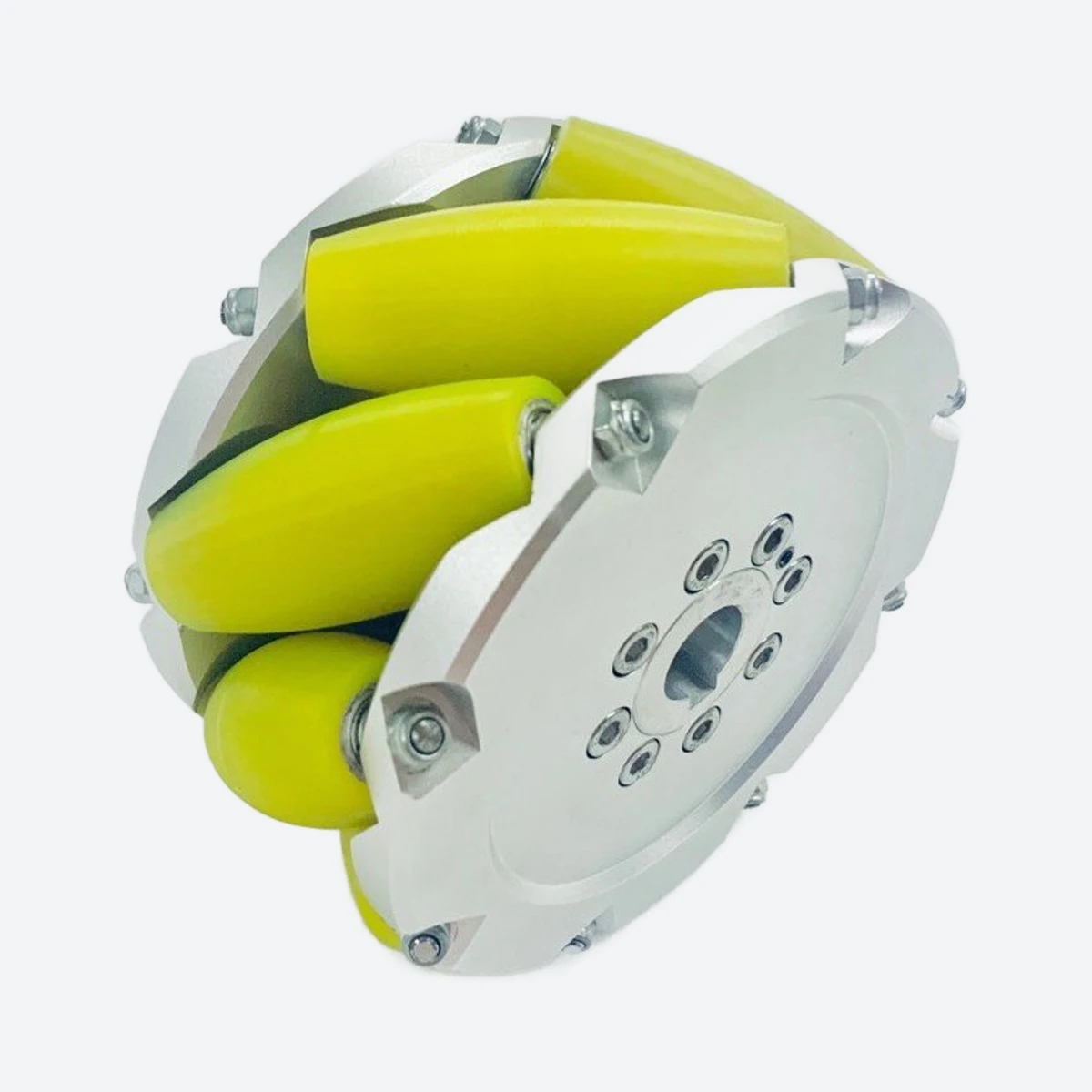

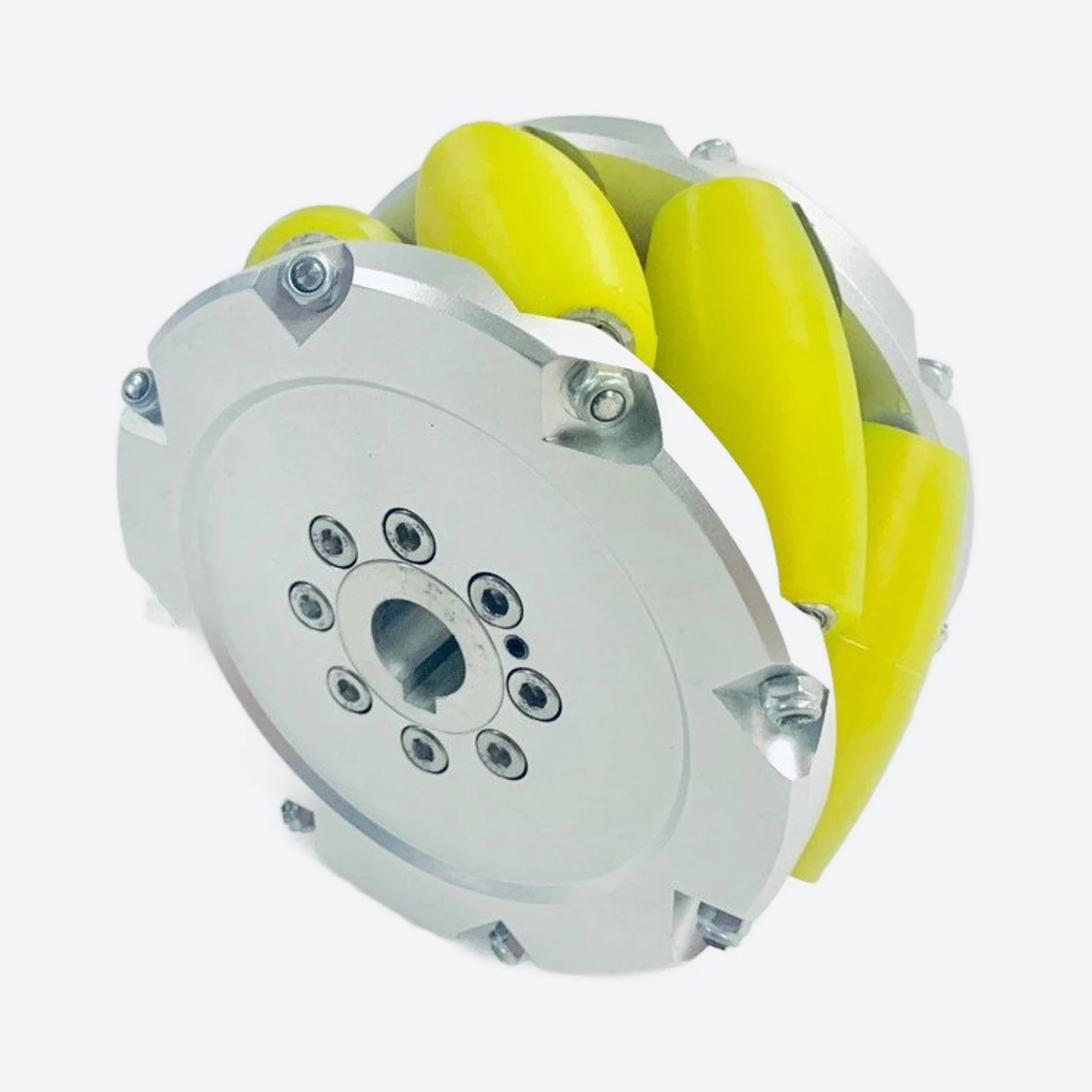

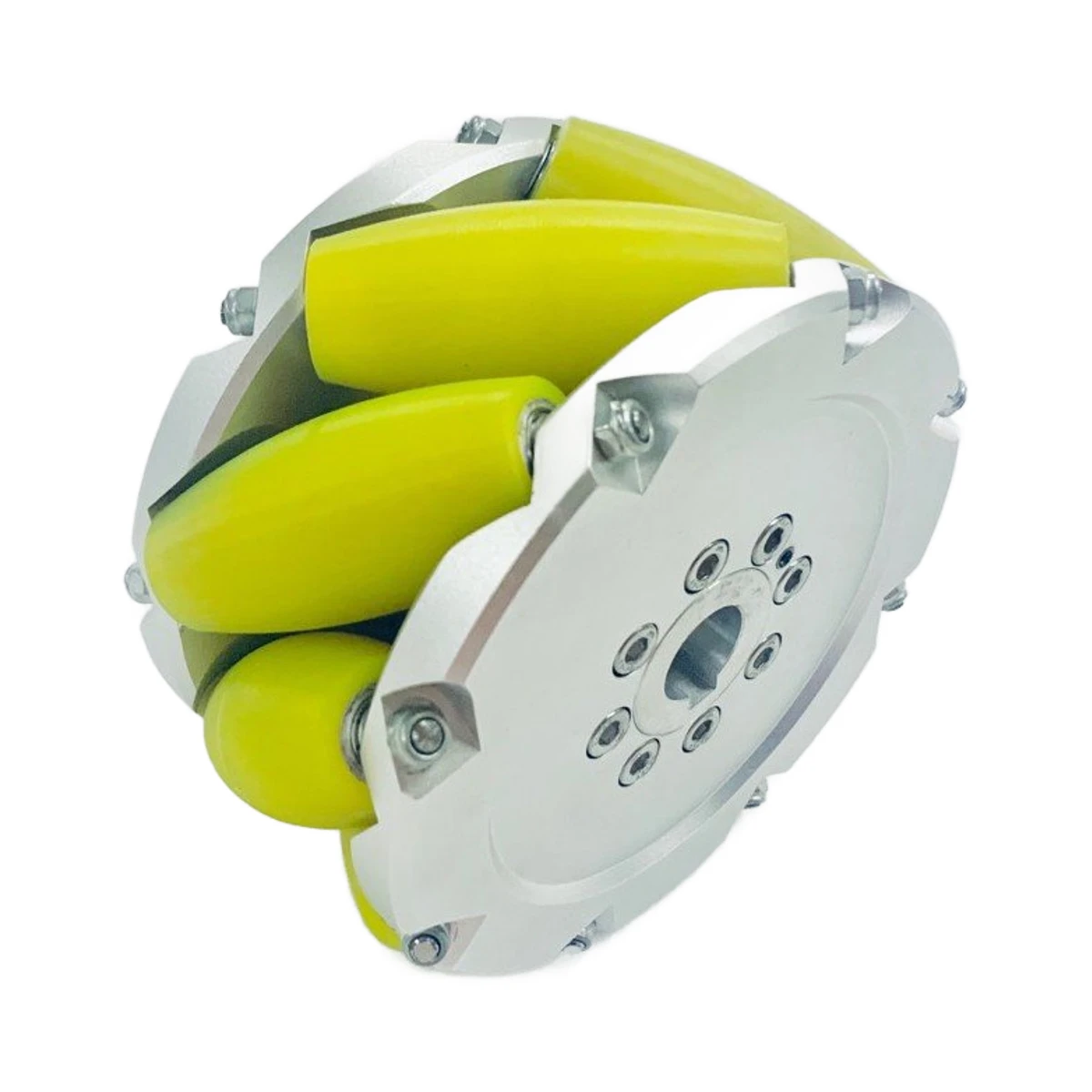

127mm Mecanum Wheel Set MX127
Key specifications
- Diameter
- 127mm (5 inches)
- Width
- 66mm
- Load Capacity
- 200kg/set
- Body Material
- Aluminum alloy
- Roller Material
- Aluminum core with polyurethane coating
- Number of Rollers
- 8
Inquire now
Send a product inquiry
Tell us about your requirements for 127mm Mecanum Wheel Set MX127.
Description
The 127mm Mecanum Wheel Set MX127 is an industrial mecanum wheel for omnidirectional AGV, robotics and material-handling platforms. Contact MECAWHEEL to confirm load, hub, roller and mounting requirements.
The MX127 is a 127mm heavy-duty industrial mecanum wheel set rated for 200kg per set. Each wheel combines an aluminum alloy body with 8 aluminum-core polyurethane-coated rollers. The set is intended for AGVs, mobile robots, and industrial omnidirectional platforms that require controlled lateral, diagonal, and rotational movement.
Specification:
Diameter: 127mm (5 inches)
Width: 66mm
Number of rollers: 8
Number of plates: 2
Body material: Aluminum alloy
Roller material: Aluminum core with polyurethane coating
Net weight: 1.8kg x 4
Load capacity: 200kg/set
Download PDF Files:
Download 3D Files:
3D archive MX127 3D CAD archive Download
