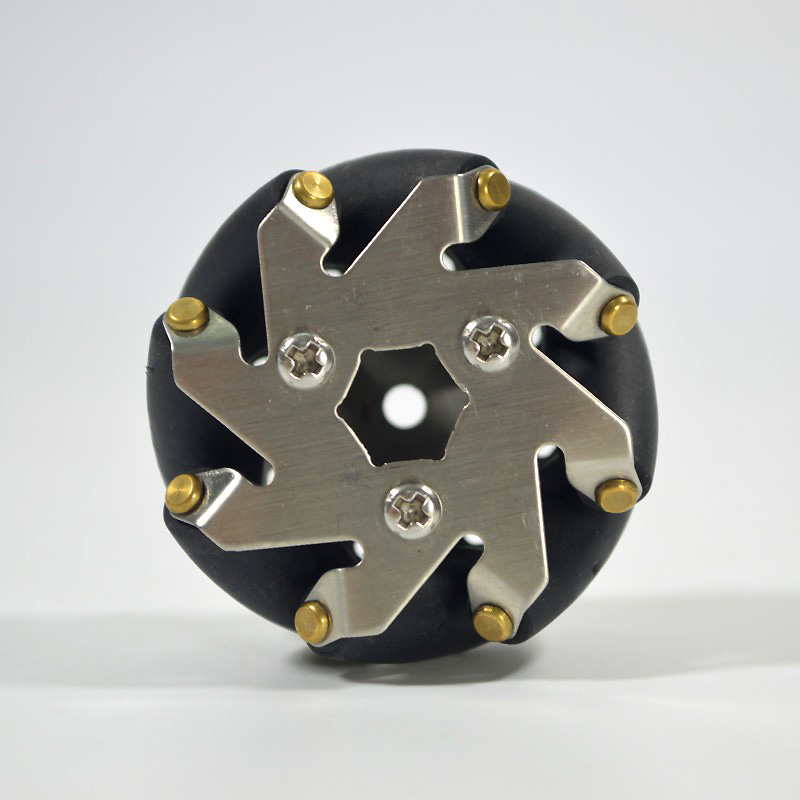

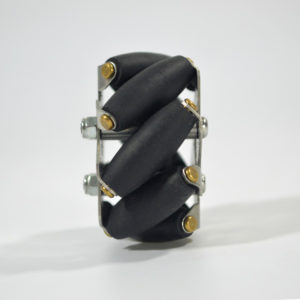

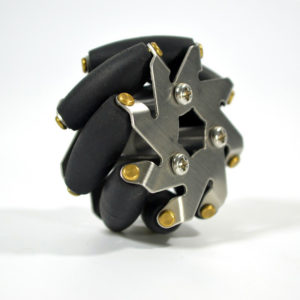

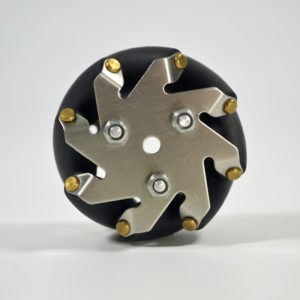

48mm Right Mecanum Wheel 14209R

Description

The 48mm Right Mecanum Wheel 14209R is an industrial mecanum wheel for omnidirectional AGV, robotics and material-handling platforms. Contact MECAWHEEL to confirm load, hub, roller and mounting requirements.

The 48mm right stainless steel mecanum wheel uses eight TPR rollers mounted at 45 degrees between two steel plates. Pair it with model 14209L in a four-wheel system, normally using two wheels of each orientation. Compatible 3mm, 4mm, and 5mm brass couplings are available.

Specifications:
Diameter: 48mm
Width: 25.5mm
Number of rollers: 8
Number of plates: 2
Body material: Stainless Steel
Roller material: TPR
Length of roller: 25.5mm
Net weight: 56g
Load capacity: 1kg

Compatible Hubs:

3mm 18076

https://www.mecawheel.com/product/3mm-brass-coupling-for-48mm-steel-mecanum-wheel-18076
4mm 18077

https://www.mecawheel.com/product/4mm-brass-coupling-for-48mm-steel-mecanum-wheel-18077
5mm 18078

https://www.mecawheel.com/product/5mm-brass-coupling-for-48mm-steel-mecanum-wheel-18078

Download PDF Files:

PDF drawing 48mm Steel Mecanum Wheel Download

Download 3D Files:

3D archive 48mm steel Mecanum wheels Download
