4mm Brass Coupling 18077

Key specifications

Diameter
4mm
Material
brass
Net Weight
13.5g
Inquire now

Send a product inquiry

Tell us about your requirements for 4mm Brass Coupling 18077.

By sending this inquiry, you acknowledge our Privacy Policy. Inquiry emails are retained for up to 24 months. Privacy Policy. You can also email info@mecawheel.com.

Application guides

Related application guides

Use these guides to confirm load, floor, mounting and motion requirements before choosing a model or sending an inquiry.

Heavy Duty Mecanum Wheels Explore heavy duty mecanum wheels for industrial robots, AGVs and high-payload omnidirectional platforms. Mecanum Wheel Load Calculation Calculate mecanum wheel load from platform mass, payload, wheel count, load distribution, dynamic effects and safety margin. AGV Mecanum Wheels Learn how AGV mecanum wheels support sideways positioning, compact turning and heavy-duty industrial automation platforms.
SKU: 18077 Category:

Description

The 4mm Brass Coupling 18077 is designed to simplify wheel, motor and shaft integration. Contact MECAWHEEL to confirm bore, keyway and mounting requirements.

The 4mm brass coupling connects a compatible 48mm steel mecanum wheel to a 4mm motor shaft. Its brass body and steel set screw provide a compact, secure connection. The coupling is sold individually; mounting bolts and hex wrenches are not included.

Specification:

Material: brass
Hole Diameter: 4mm
hexagonal edge to edge distance:10mm
Total length:30.5mm
Net weight: 13.5g
Sold individually

Download PDF Files:

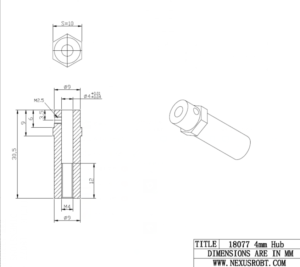

PDF drawing 4mm Couplings 18077 Download
