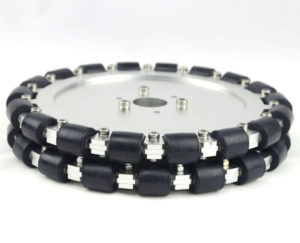

203mm Omni Wheel 14125

Description

The 203mm Omni Wheel 14125 is an industrial omni wheel for robotics, conveyors and multidirectional transfer systems. Contact MECAWHEEL to confirm load, hub, roller and mounting requirements.

The (8 inch) 203mm double aluminum omni directional wheel has a robust body when compared to plastic omni directional wheel. This wheel can be driven by the hubs, and one wheel can be driven by a hub.The omni direction wheel Used for robot kits, cart wheels, and other applications that require this wheel’s special features.

Specifications:
Diameter: 8 inches(203mm)
Axial Width: 39mm
Number of Plates: 2
Number of rollers: 36
Body Material: Aluminum alloy
Roller Material: Rubber
Roller Bearing: Ball bearing
Roller Diameter: 19mm
Net Weight: 1.3kg
Load Capacity: 50kg

Compatible with coupling size link:
6mm universel de montage en aluminium moyeux accouplement  18007:https://www.mecawheel.com/product/6mm-universal-aluminum-mounting-hubs-for-shaft-18007

8mm Universal Aluminum hubs 18008:
https://www.mecawheel.com/product/8mm-universal-aluminum-mounting-hubs-for-shaft-18008

10mm universal aluminum mounting hub 18009:https://www.mecawheel.com/product/10mm-universal-aluminum-mounting-hubs-for-shaft-18009

12mm Universal Aluminum hubs 18010:https://www.mecawheel.com/product/12mm-universal-aluminum-mounting-hubs-for-shaft-18010

16mm universal aluminum mounting hubs for shaft 18012:https://www.mecawheel.com/product/16mm-universal-aluminum-mounting-hubs-for-shaft-18012

8mm Aluminum Key Hub 18024:https://www.mecawheel.com/product/8mm-key-hub-18024

10mm Aluminum Key Hub 18025:https://www.mecawheel.com/product/10mm-key-hub-18025

12mm Aluminum Key Hub 18017:https://www.mecawheel.com/product/12mm-key-hub-18017

16mm Aluminum Key Hub 18026:https://www.mecawheel.com/product/16mm-key-hub-18026

10mm Stainless Steel Key Hub 18029:https://www.mecawheel.com/product/10mm-stainless-steel-key-hub-18029

12mm Stainless Steel Key Hub 18030:https://www.mecawheel.com/product/12mm-stainless-steel-key-hub-18030

16mm Stainless Steel Key Hub 18031:https://www.mecawheel.com/product/16mm-stainless-steel-key-hub-18031

6mm new aluminum spacer  with key (hub)18032:https://www.mecawheel.com/product/6mm-new-aluminum-spacer-hub-with-key-18032

8mm new aluminum spacer  with key (hub)18033:https://www.mecawheel.com/product/8mm-new-aluminum-spacer-hub-with-key-18033

10mm new aluminum spacer  with key (hub)18034:https://www.mecawheel.com/product/10mm-new-aluminum-spacer-hub-with-key-18034

Download PDF Files:
203mm Aluminum Omni Wheel Layout
Omni Wheel Brochure

Download STP Files：

203mm-Double-Aluminium-Omni-Directional-Wheel
