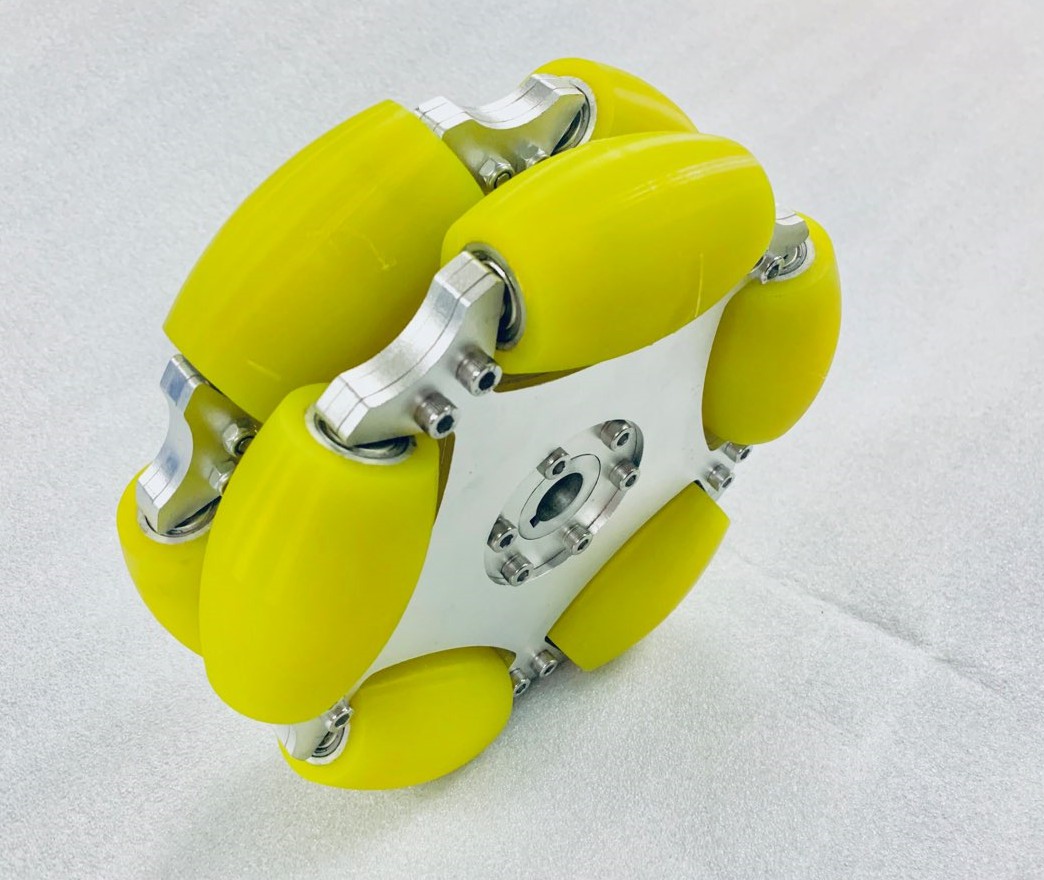

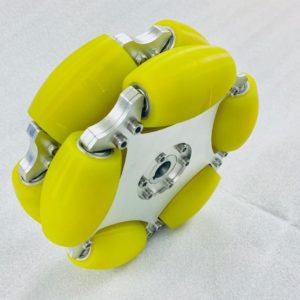

203mm Omni Wheel 14194
Key specifications
- Diameter
- 203mm (8 inches)
- Width
- 87mm
- Load Capacity
- 80kg/piece
- Body Material
- aluminum alloy
- Roller Material
- polyurethane
- Number of Rollers
- 10 pcs
Inquire now
Send a product inquiry
Tell us about your requirements for 203mm Omni Wheel 14194.
Description
The 203mm Omni Wheel 14194 is an industrial omni wheel for robotics, conveyors and multidirectional transfer systems. Contact MECAWHEEL to confirm load, hub, roller and mounting requirements.
The 8-inch (203mm) omnidirectional wheel provides a maximum load capacity of 80kg. Each roller contains two bearings and uses a polyurethane tread with an aluminum core. CNC-machined components provide stable, quiet, reliable, and wear-resistant performance for indoor and outdoor applications.
Specification:
Diameter: 203mm (8 inches)
Inner hole diameter: 17mm
Axial width: 87mm
Number of rollers: 10 pcs
Body material: aluminum alloy
Roller material: polyurethane
Net weight: 3kg
Load capacity: 80kg/piece
