14mm Stainless Steel Key Hub 18014
Key specifications
- Material
- stainless steel
- Inside Diameter
- 14mm
- Outside Diameter
- 57mm
- Net Weight
- 158g
Inquire now
Send a product inquiry
Tell us about your requirements for 14mm Stainless Steel Key Hub 18014.
Description
The 14mm Stainless Steel Key Hub 18014 is designed to simplify wheel, motor and shaft integration. Contact MECAWHEEL to confirm bore, keyway and mounting requirements.

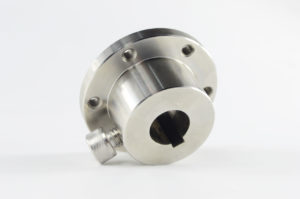

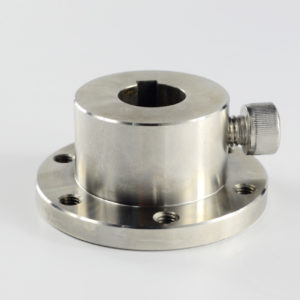

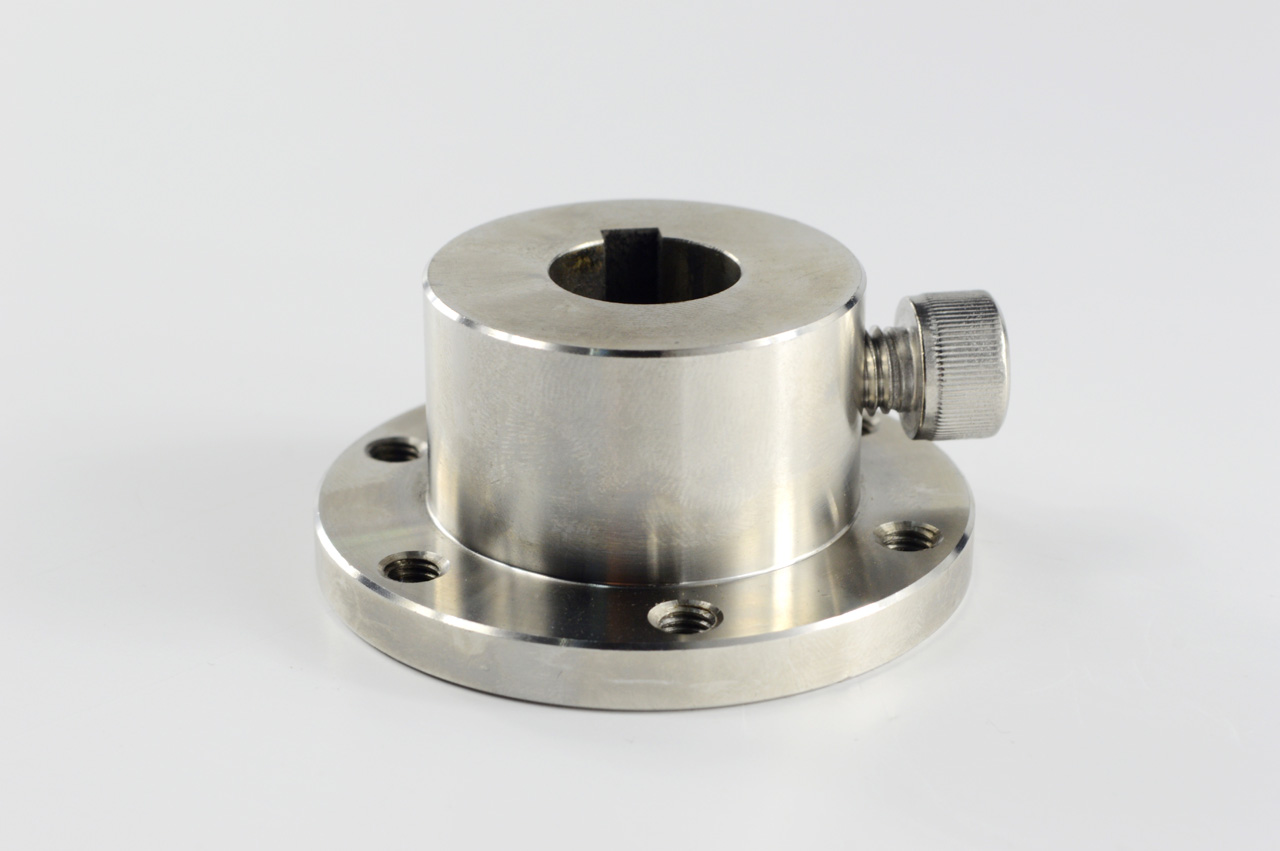

This 14mm stainless steel key hub is designed to connect a motor and a wheel. The stainless steel construction provides greater strength and durability than an aluminum version. The hub is secured to the motor shaft with a key and thread-locking compound. It provides a durable connection between the motor shaft and wheel.
We manufacture keyway hubs and can customize bore sizes to suit your requirements, with low minimum order quantities available.
Specification:
Material: stainless steel
Outside diameter: 57mm
Inside diameter: 14mm
Net weight: 158g
Sold individually
