127mm Omni Wheel 14210 - product image

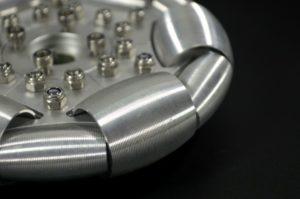

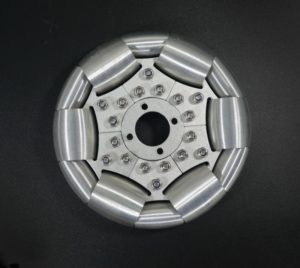

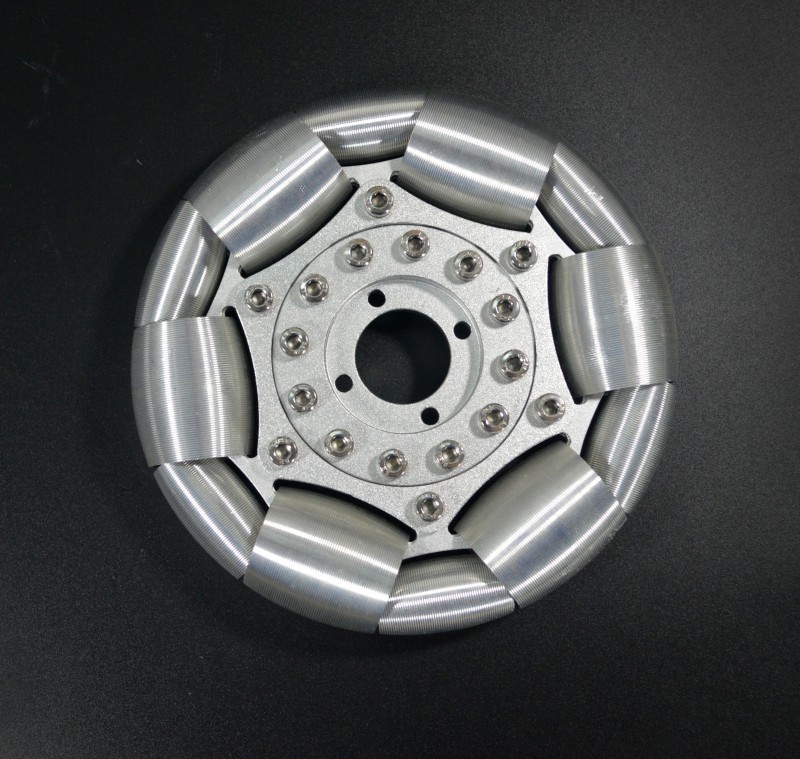

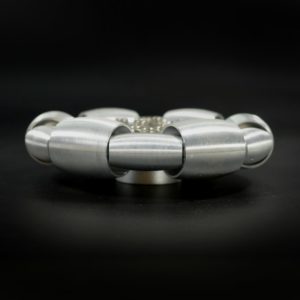

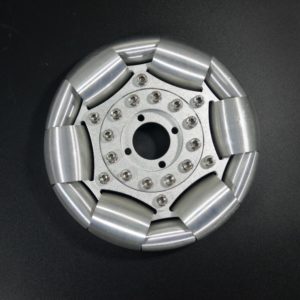

127mm Omni Wheel 14210

Key specifications

Diameter
127mm
Load Capacity
20kg
Body Material
Aluminum Alloy
Net Weight
500g
Inquire now

Send a product inquiry

Tell us about your requirements for 127mm Omni Wheel 14210.

By sending this inquiry, you acknowledge our Privacy Policy. Inquiry emails are retained for up to 24 months. Privacy Policy. You can also email info@mecawheel.com.

Application guides

Related application guides

Use these guides to confirm load, floor, mounting and motion requirements before choosing a model or sending an inquiry.

Robot Omni Wheels Compare robot omni wheel selection factors for mobile robots, ballbots, transfer modules and research platforms. Industrial Omni Wheels Industrial omni wheels for conveyors, transfer tables, carts and automation systems requiring smooth multidirectional movement. Mecanum Wheels vs Omni Wheels Compare mecanum wheels and omni wheels by motion, wheel layout, load, control and industrial application requirements.
SKU: 14210 Category:

Description

The 127mm Omni Wheel 14210 is an industrial omni wheel for robotics, conveyors and multidirectional transfer systems. Contact MECAWHEEL to confirm load, hub, roller and mounting requirements.

The 127mm Aluminum Single Omni wheel for ball balance ballbot 14210 is designed for ballbot and balancing-robot applications. It runs more smoothly than comparable double-row omni wheels and consists of six large rollers and six small rollers.
Compatible hub bore sizes include 8mm (without a keyway), 10mm, 12mm, 14mm, and 16mm.

Specifications:
Diameter: 127mm
Thickness: 28mm
Body material: Aluminum Alloy
Number of large rollers: 6 pcs
Number of small rollers: 6 pcs
Net weight: 500g
Load capacity: 20kg

Compatible Hubs

Compatible hub options are available in several bore sizes. Browse universal hubs or contact MECAWHEEL to confirm the correct model.

Download PDF Files:
PDF drawing 127mm Aluminum single Omni wheel Download

Download 3D Files:

3D archive 127mm Aluminum single Omni wheel Download
