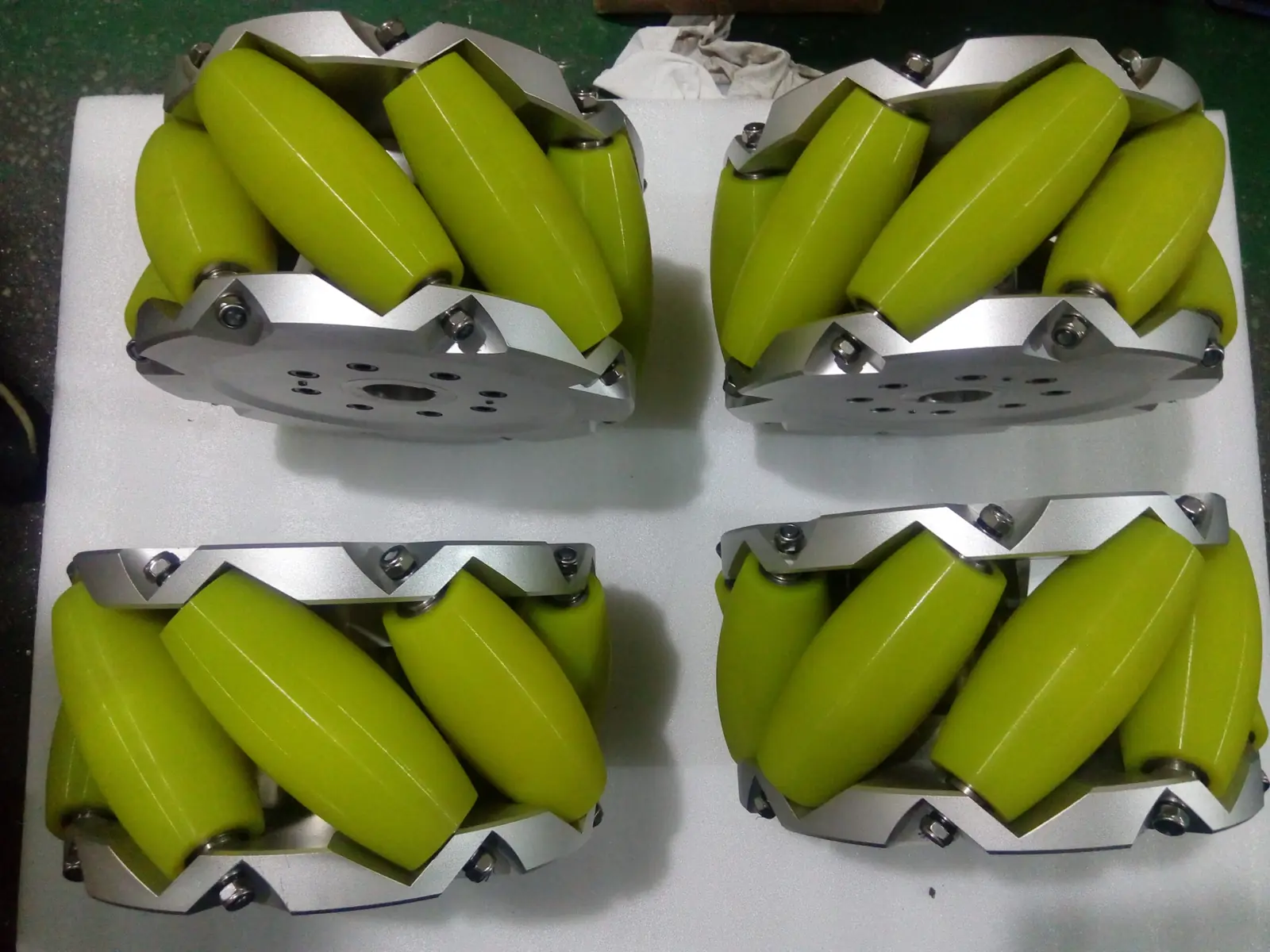

375mm Mecanum Wheel Set MX375
Key specifications
- Diameter
- 375mm (15 inches)
- Width
- 170mm
- Load Capacity
- 4500kg/set
- Body Material
- Aluminum alloy
- Roller Material
- Aluminum core with polyurethane coating
- Number of Rollers
- 8
Inquire now
Send a product inquiry
Tell us about your requirements for 375mm Mecanum Wheel Set MX375.
Description
The 375mm Mecanum Wheel Set MX375 is an industrial mecanum wheel for omnidirectional AGV, robotics and material-handling platforms. Contact MECAWHEEL to confirm load, hub, roller and mounting requirements.
The MX375 is a 375mm heavy-duty industrial mecanum wheel set rated for 4500kg per set. Each wheel combines an aluminum alloy body with 8 aluminum-core polyurethane-coated rollers. The set is intended for AGVs, mobile robots, and industrial omnidirectional platforms that require controlled lateral, diagonal, and rotational movement.
Specification:
Diameter: 375mm (15 inches)
Width: 170mm
Main shaft hole: φ50mm (customizable)
Number of rollers: 8
Number of plates: 2
Body material: Aluminum alloy
Roller material: Aluminum core with polyurethane coating
Net weight: 45kg x 4
Load capacity: 4500kg/set
Download PDF Files:
Download 3D Files:
3D archive MX375 3D CAD archive Download
