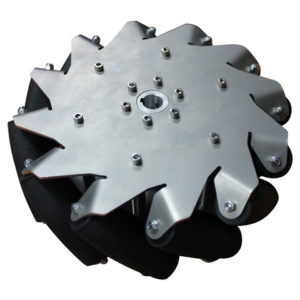

254mm Right Mecanum Wheel 14141R
Right-hand 254mm stainless steel mecanum wheel with 12 nylon bearing rollers for heavy-duty multidirectional platforms.
Key specifications
- Diameter
- 254mm (10 inches)
- Width
- 95mm
- Load Capacity
- More than 60kg
- Material
- Aluminum
- Body Material
- Stainless steel
- Roller Material
- Nylon
Inquire now
Send a product inquiry
Tell us about your requirements for 254mm Right Mecanum Wheel 14141R.
Description
The 254mm Right Mecanum Wheel 14141R is an industrial mecanum wheel for omnidirectional AGV, robotics and material-handling platforms. Contact MECAWHEEL to confirm load, hub, roller and mounting requirements.
The 14141R is the right-hand version of the 254mm stainless steel mecanum wheel. Its 12 nylon rollers are mounted at 45 degrees to the main wheel axis, allowing a four-wheel platform to move forward, backward, sideways, diagonally and rotate in place through coordinated motor control.
Use this right-hand wheel with the corresponding 14141L left-hand wheels in the correct chassis positions. The stainless steel plates and aluminum spacers provide a robust structure for AGVs, industrial robots and material-handling platforms. Confirm wheel orientation, motor direction and load distribution during system integration.
Specifications
- Orientation: Right-hand wheel
- Diameter: 254mm (10 inches)
- Width: 95mm
- Number of rollers: 12
- Number of plates: 2
- Body material: Stainless steel
- Roller material: Nylon
- Spacer material: Aluminum
- Roller length: 92mm
- Roller diameter: 38.2mm
- Net weight: 4.2kg
- Load capacity: More than 60kg
